FINGER JOINT PANEL

This panel consists of wooden slats, joined by indented joints (finger joint) and glued to the board edges providing a great dimension of solid wood.

The Finger Joint System is a wooden assembly that makes the most of it and get in return a very stable and highly resistant board.


SLATTED BOARD

This panel consists of wooden slats, edge glued, obtaining a large size panel solid wood.

Both panels are mainly used in the manufacture of furniture, doors, kitchens, floors and a wide range of moldings.







CHARACTERISTICS


- 100% Wood.
- 25mm width strips and more.
- Two sides sanded and calibrated.
- Excellent stability.
- Resistant.
- Ready to use.
- Easy to work.
- Improved performance.
- Time saving.
- Cost controlled.
- Moisture content guaranteed.
- Space saving storage.

QUALITY

A= Maximum 3 knots, typical wood hues (separating light, medium and dark tones).

B= mínimal defects (knots of dark tone, pitch black color, up to 5% or calibration sanding defects, more than three in the face).

C= Accept knots dead, bone, tar, black color, coloring, grinding and sizing defects, surface cracks, joints excellent quality.






SPECIFICACIONS

FORMAT
Finger Joint
122 cm wide by 244 cm long.
Slatted
122 cm wide by 213 cm long.

THICKNESS:
19.1 mm

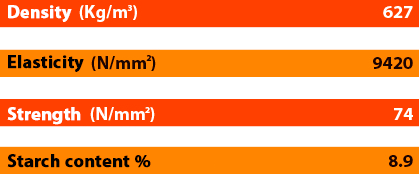

DENSITY:
627 kg/m3

TREATMENT
Vacuum impregnation with boron salts.

HUMIDITY
Kiln Dryed to 10% (+ - 2%).

GLUE
D3 DIN standard (indoor).

FINISH OR TERMINACIÓN
Both sides sanded witch 120 grain sandpaper.






UTILITY BOARD.

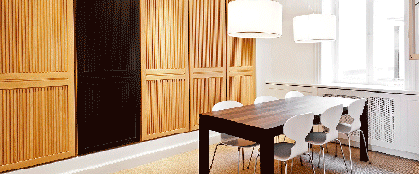

This product can be used for building solid structures in architecture, building furniture, wooden accesories and friezes.

- Indoors architecture.
- Floors.
- Kitchens.
- Doors.
- Roofs.
- Stairs.
- Tables.
- Closets.
